Landoll L2424 Contact for Price Back to Search Results  register
  send to a friend        Ship this Item         Apply For Financing         print this Ad         Can't find it?
No image available for this ad listing image listing image listing image listing image listing image listing image listing image listing image






Click to view larger photos


INFORMATION DETAILS

ID:  13348948

 Year:  2015
Make: Landoll

 Model: L2424
Type: New
MSRP:  N/A Engine Size - cc: N/A

CAPACITY:   24,000 lbs.
BASE WEIGHT:   6,000 lbs.
DECK:   24'
AXLES:   2
TIRES & PLY RATING:   (8) 235 80R 16 LRE


SELLER DESCRIPTION

24,000 lb. Capacity

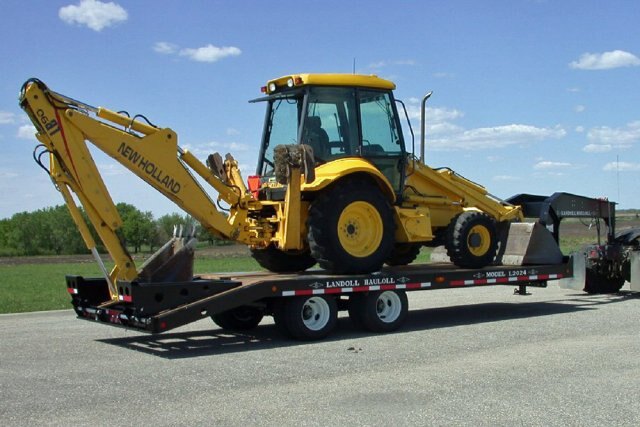

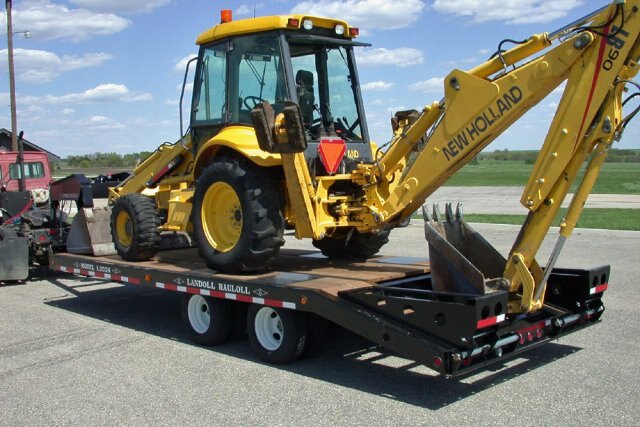

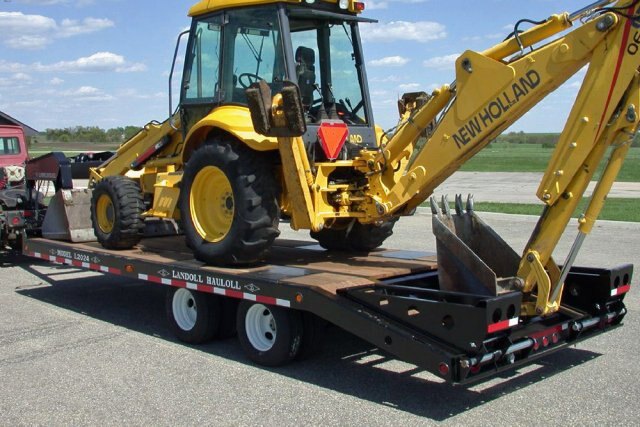

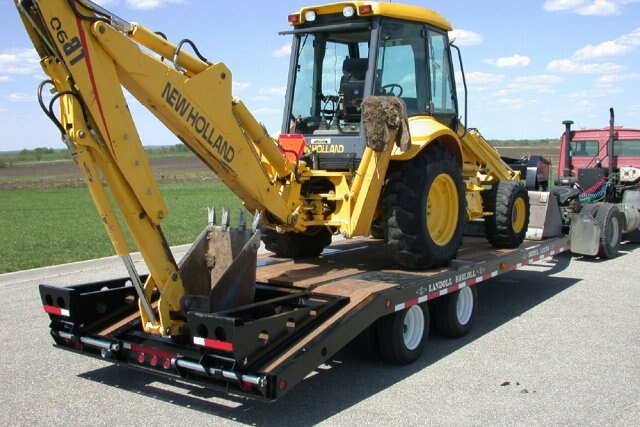

The L2424 is a 2 axle 24,000 lb. capacity tag trailer designed to haul a variety of construction equipment.  The trailer is constructed with 4" Jr. I-Beams 80,000 PSI material for the crossmembers and 8" formed side rails.  Standard features include ten combination stake pocket/chain gotchas, bucket trough and powder coat paint finish.
  Features
  • Conc. Deck Rating: 20,000 lbs. in 10' Area
  • *Capacity: 24,000 lbs.
  • Estimated Base Weight: 6,000 lbs.
  • Main Frame: I-Beam
  • Crossmembers: 4" Jr. I-Beams on 16" Centers 80,000# PSI
  • Side Rail: 8" Deep Formed Steel Side Rails
  • Jack: 12,000 lb. Quick Lift Parking Jack
  • Tires: 235/80R 16 LRE
  • Wheels: Dual Disc Wheels - 8-Hole
  • Axles: 2 - 12,000 lbs. Axles with Oil Seal Hubs
  • Suspension: Spring Suspension (3" Wide)
  • Brakes: 12-1/4" x 5" Electric Brakes
  • Hitch: Heavy Duty Pintle Eye Hitch Adjustable 20" to 30" with Safety Chains
  • Headboard: 6" Headboard
  • Decking: 2" Nominal Fir
  • Loaded Deck Height: 35"
  • Width: 102" Wide
  • Length: 24' Deck (19' Flat Deck + 5' Beavertail)

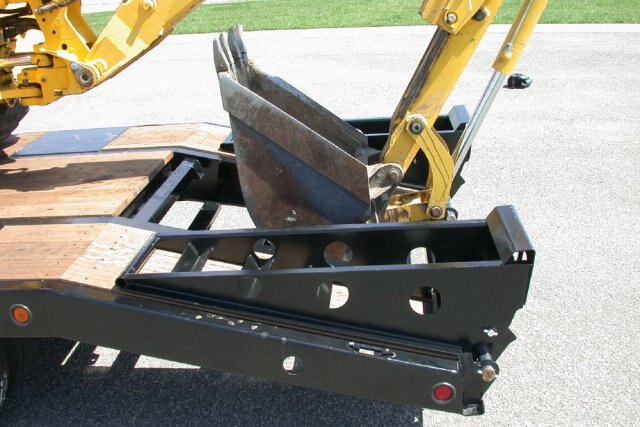

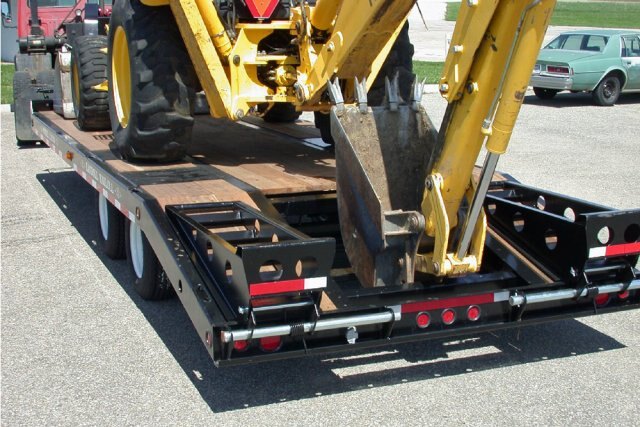

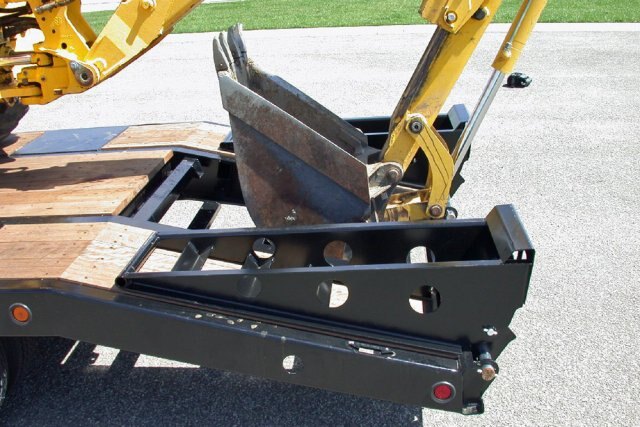

  • Beavertail: 5' Self Cleaning Beavertail

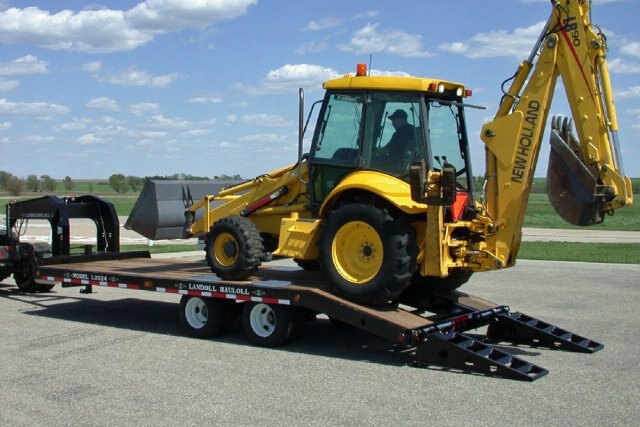

  • Ramps: 5' Self Cleaning Adjustable Spring Assisted Flip-Over Ramps
  • Lights: Sealed Beam System with Sealed Wiring Harness D.O.T. Approved
  • Tie Downs: 10 Double Key Hole Chain Locks - Gotchas / Stake Pockets
  • Finish: High Quality Powder Paint
  • Color: Yellow
  • Decals: Hi-Visibility Reflective Package

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.
